Fun with Filters and Frequencies

Part 1: Filters and Edges

1.1: Convolutions from Scratch

I implemented 2D convolution with NumPy using zero-padding from first principles. When compared with scipy.signal.convolve2d, my implementation performs equally well with nearly identical runtime. The UC Davis logo on my shirt reminds me: GO AGGIES... and bears! 🐻

Convolution Implementation

def convolution(image, kernel):
    image_height, image_width = image.shape
    kernel_height, kernel_width = kernel.shape
    pad_height = kernel_height // 2
    pad_width = kernel_width // 2

    # zero pad both top/bottom and left/right of the image
    padded_image = np.pad(image, ((pad_height, pad_height),
                                   (pad_width, pad_width)), mode='constant')
    output = np.zeros((image_height, image_width))

    for i in range(image_height):
        for j in range(image_width):
            output[i, j] = np.sum(padded_image[i:i+kernel_height,
                                               j:j+kernel_width] * kernel)
    return output

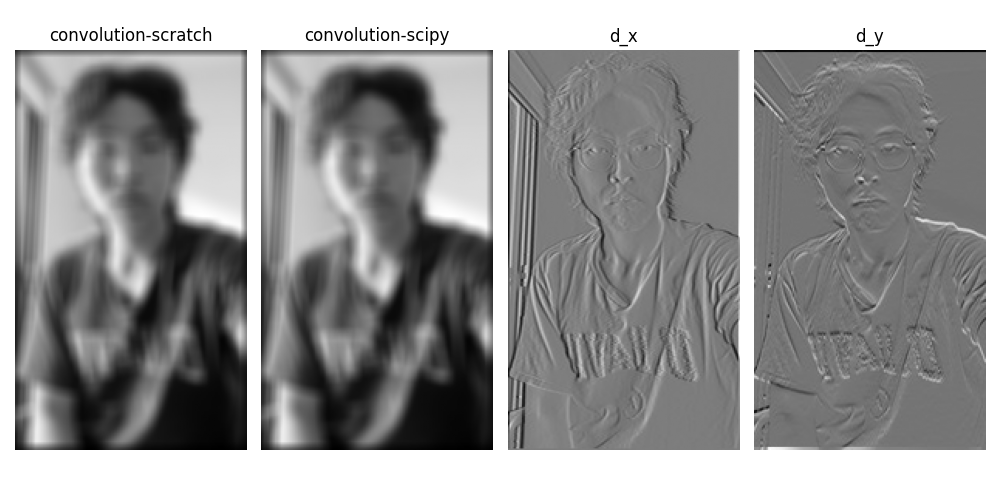

Convolution operation results

1.2: Finite Difference Operator

Here I computed partial derivatives in x and y directions, calculated gradient magnitude, and binarized the edge image using a threshold of 0.3. This threshold proved to be the sweet spot after multiple trials—it retains important edges while suppressing noise artifacts.

Gradient Computation

The gradient is computed as:

$$G = \sqrt{(\frac{\partial I}{\partial x})^2 + (\frac{\partial I}{\partial y})^2}$$

where edges are detected by thresholding this gradient magnitude.

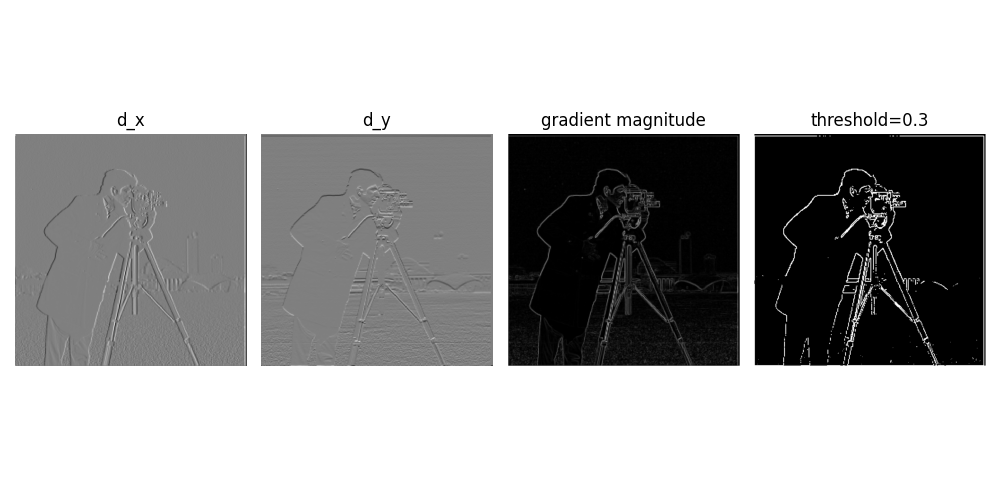

Edge detection using finite differences

1.3: Derivative of Gaussian (DoG) Filter

In this section, I applied Gaussian smoothing combined with derivative filters. Comparing results with the previous part, we can immediately see that noise is significantly suppressed—the spurious dots at the bottom disappeared—making real edges much more prominent. Using a single convolution with a pre-computed derivative-of-Gaussian kernel instead of two sequential convolutions yields identical results, proving that convolution is associative.

Bells & Whistles: Gradient Orientation

I calculated the gradient orientation by computing the arctangent of d_y/d_x with proper normalization, resulting in a striking visualization of edge directions throughout the image.

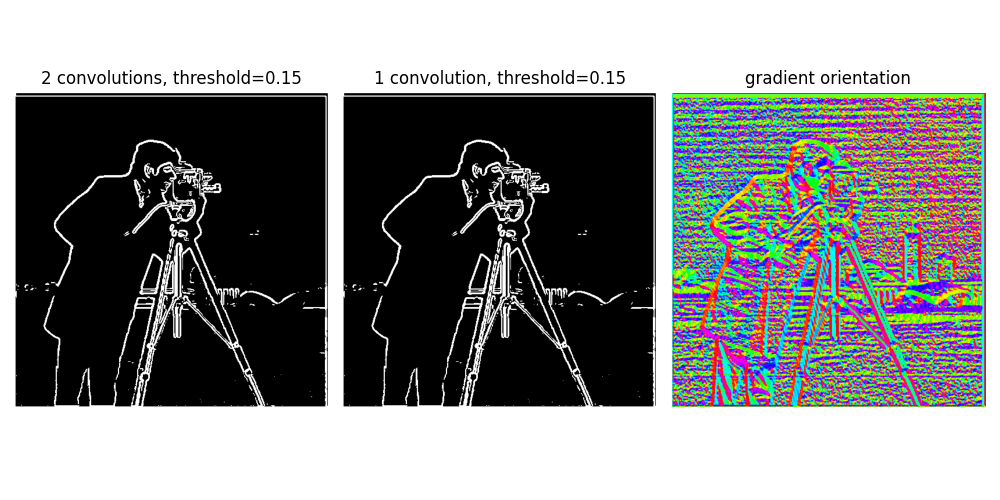

Derivative of Gaussian filtering with orientation visualization

Part 2: Frequency Applications

2.1: Image Sharpening (Unsharp Mask)

I implemented the unsharp mask technique for image sharpening. The method works by subtracting a blurred image from the original to extract high-frequency components, then adding these frequencies back to enhance sharpness. This can be efficiently computed with a single convolution using the kernel: unsharp = (1+α)e - αg.

Sharpening Formula

$$I_{sharp} = I_{original} + \alpha(I_{original} - I_{blurred})$$

As shown in the results, higher α values produce increasingly sharp images. When the image is pre-blurred, unsharpening produces "softer" results since high-frequency components are already attenuated.

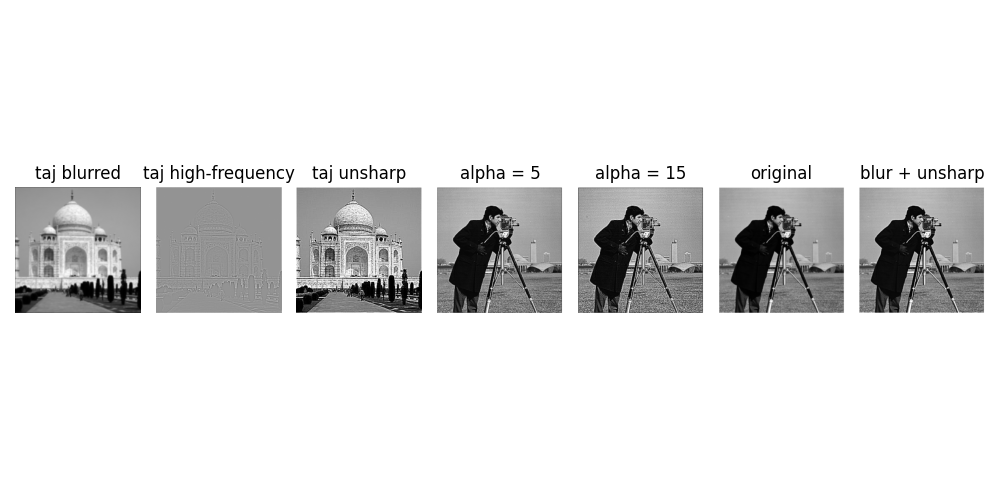

Image sharpening with varying α values

2.2: Hybrid Images

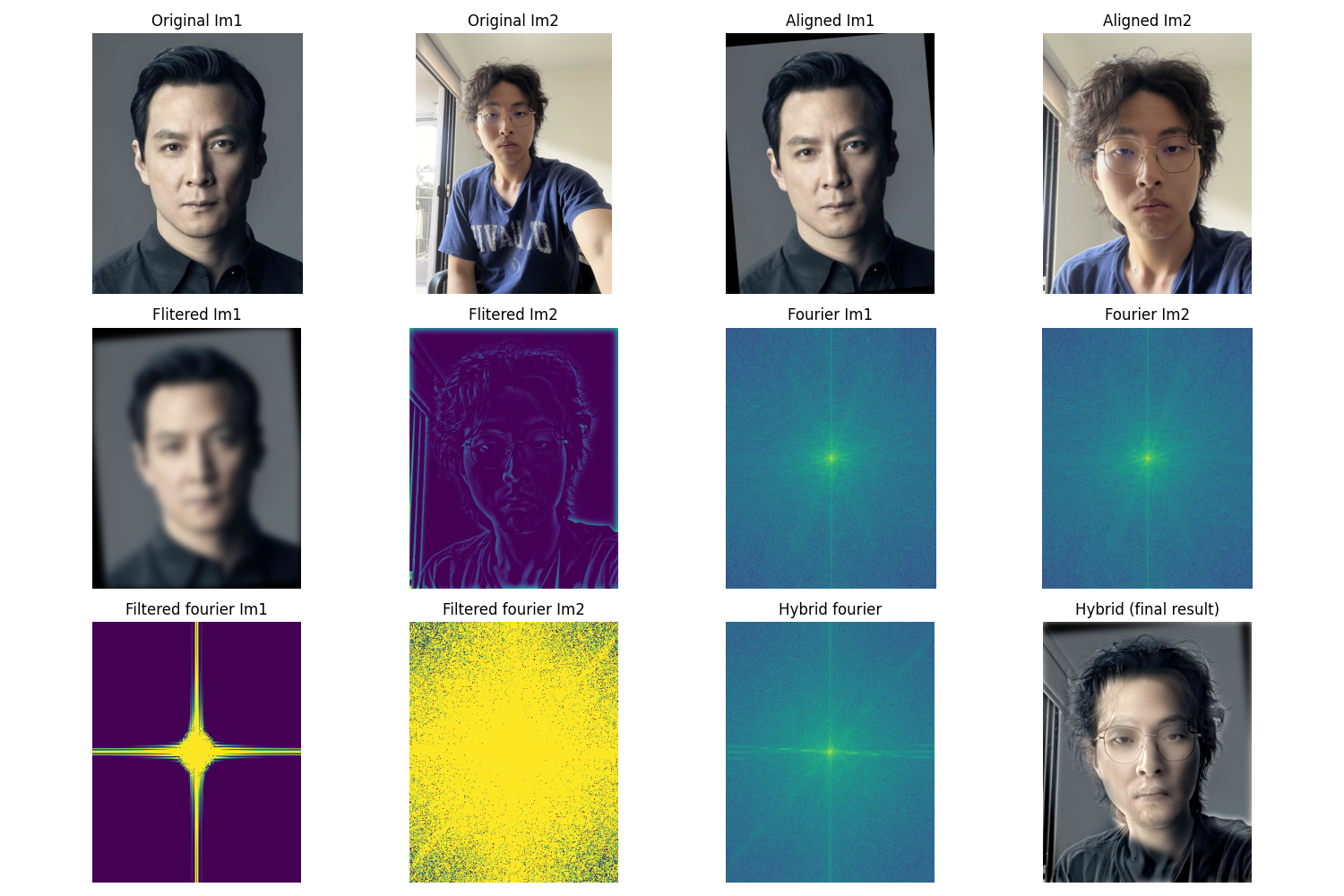

I created three hybrid images by combining low-frequency content from one image with high-frequency details from another. The Fourier transform is displayed for the third example to illustrate how different frequency bands contribute to the final perception.

Bells & Whistles: Color Enhancement

Adding color to the low-frequency component significantly improves the realism of hybrid images. This works because when viewing up close, high-frequency details dominate and color has minimal impact; but when viewing from a distance, color serves as a powerful cue for recognizing the low-frequency image faster and more naturally.

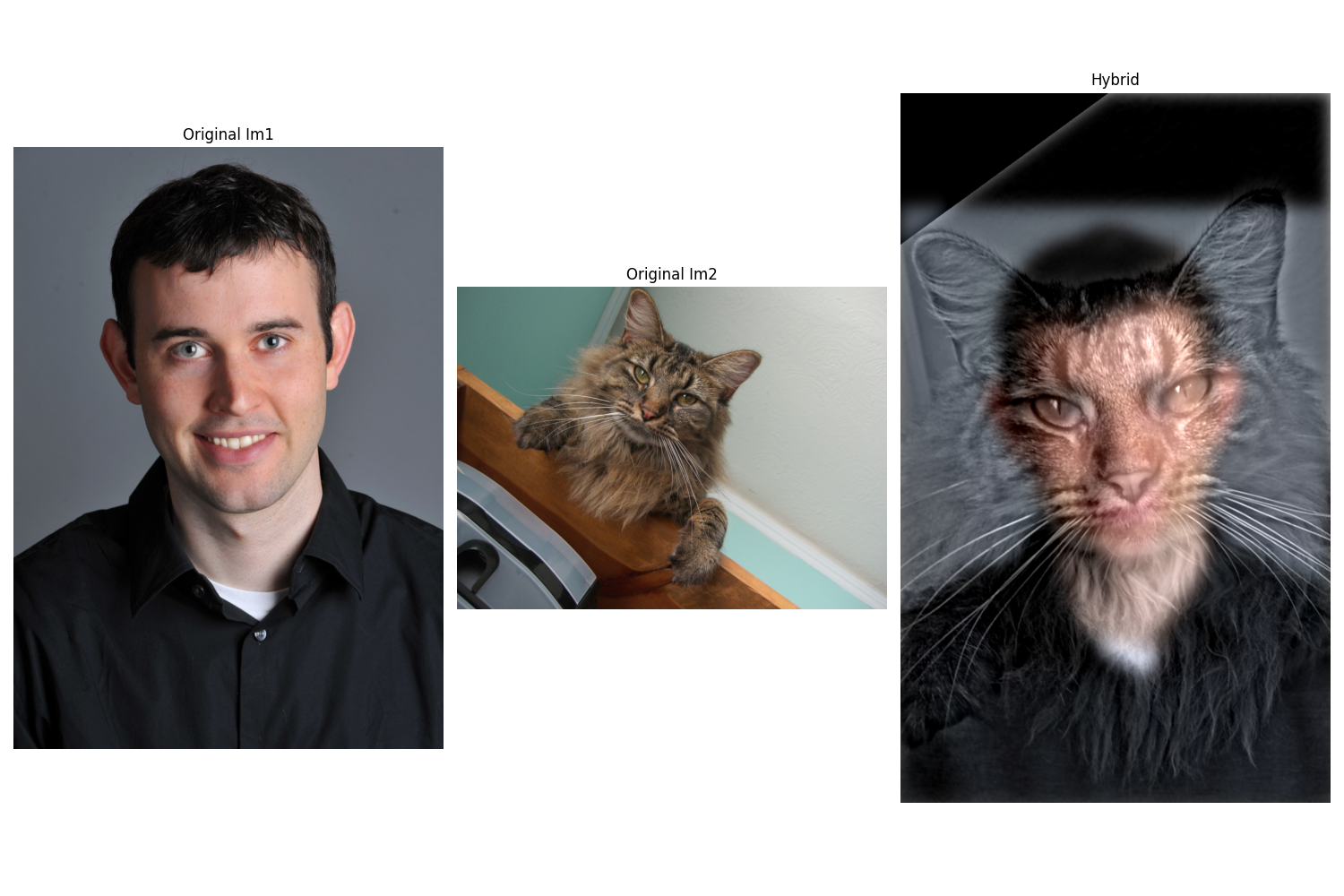

Derek and Cat

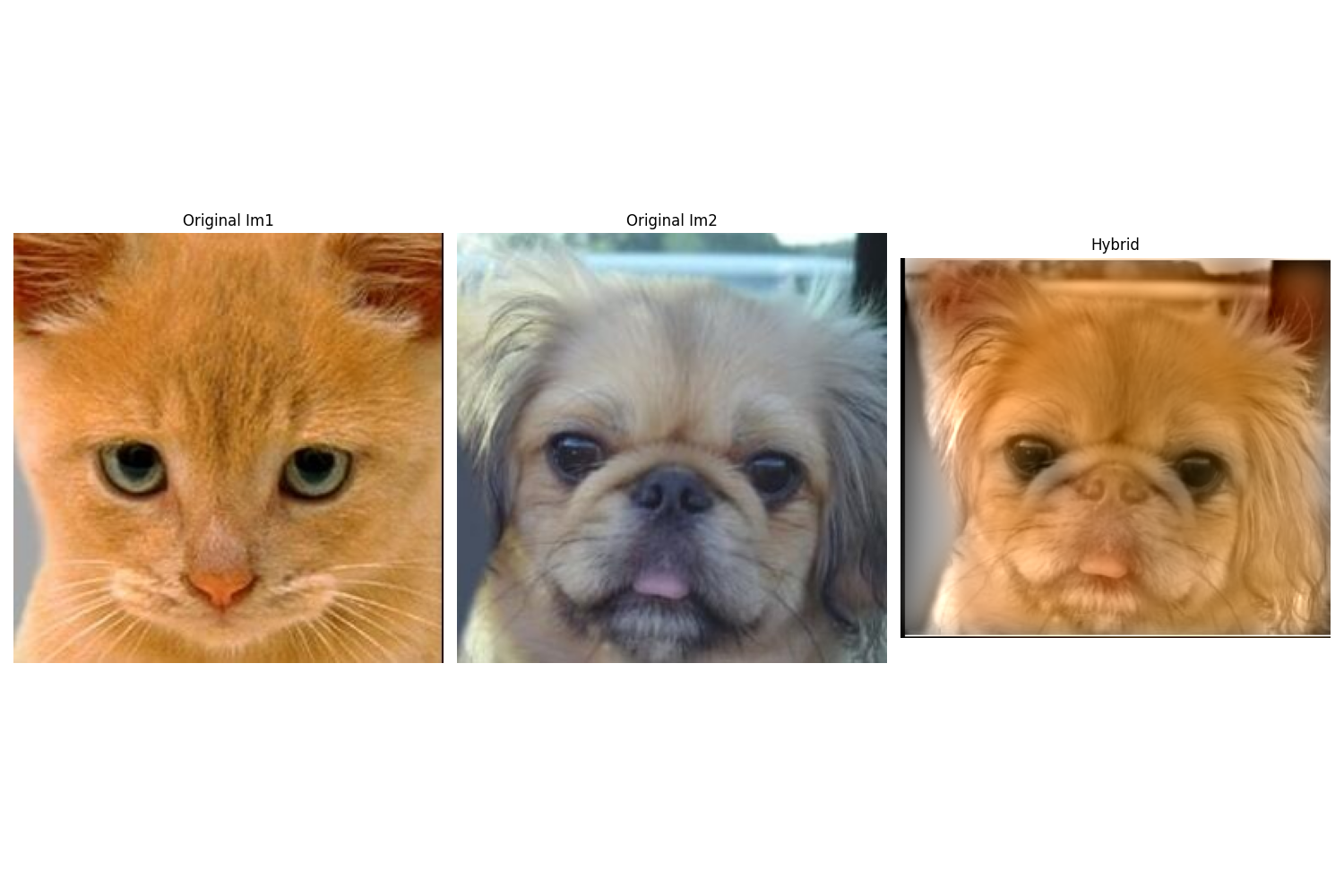

Cat and Dog

Is this a hybrid image?

Fun Observation

P.S. Daniel Wu is often called the "Asian version of Brad Pitt" by everyone who sees them together—so this hybrid works perfectly! 😄

2.3: Gaussian and Laplacian Stacks

Here I generated Gaussian and Laplacian stacks (image pyramids) for multiresolution blending. The Oraple stack visualization below shows the progressive levels, with the final blended result at the bottom.

Stack Construction

Gaussian Stack: Successive Gaussian blurring at multiple scales

Laplacian Stack: Difference between consecutive Gaussian levels, capturing band-pass filtered content

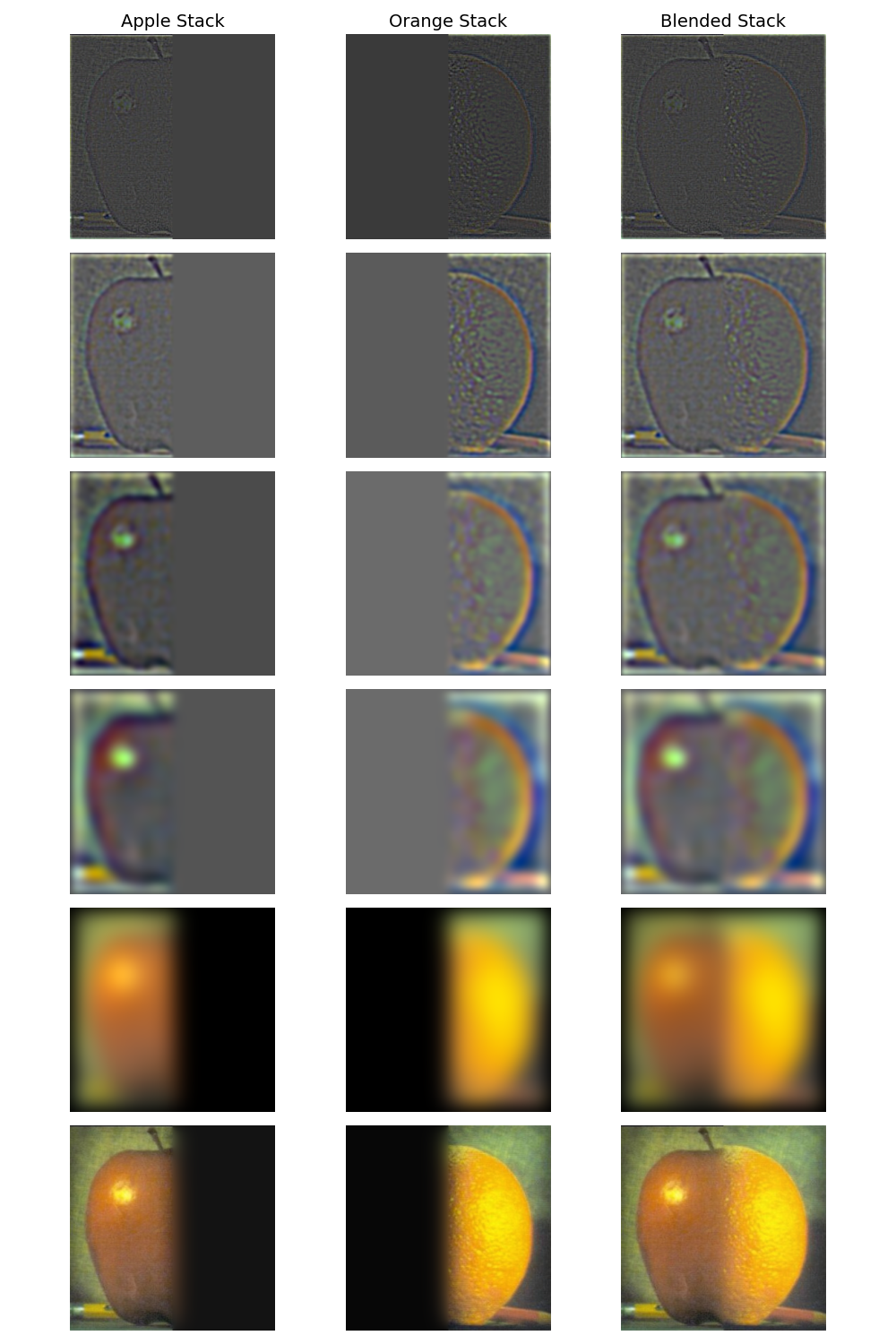

Oraple: Gaussian and Laplacian pyramid levels

2.4: Multiresolution Blending (Oraple)

I blended two additional images using Laplacian stacks and a Gaussian blending mask. The second example demonstrates blending with an irregular mask, showing the flexibility of the technique.

Bells & Whistles: RGB Color Blending

Adding color to each blended image significantly improves the result, especially when the source images have similar colors. Color makes the blended result appear much more natural and cohesive compared to grayscale versions.

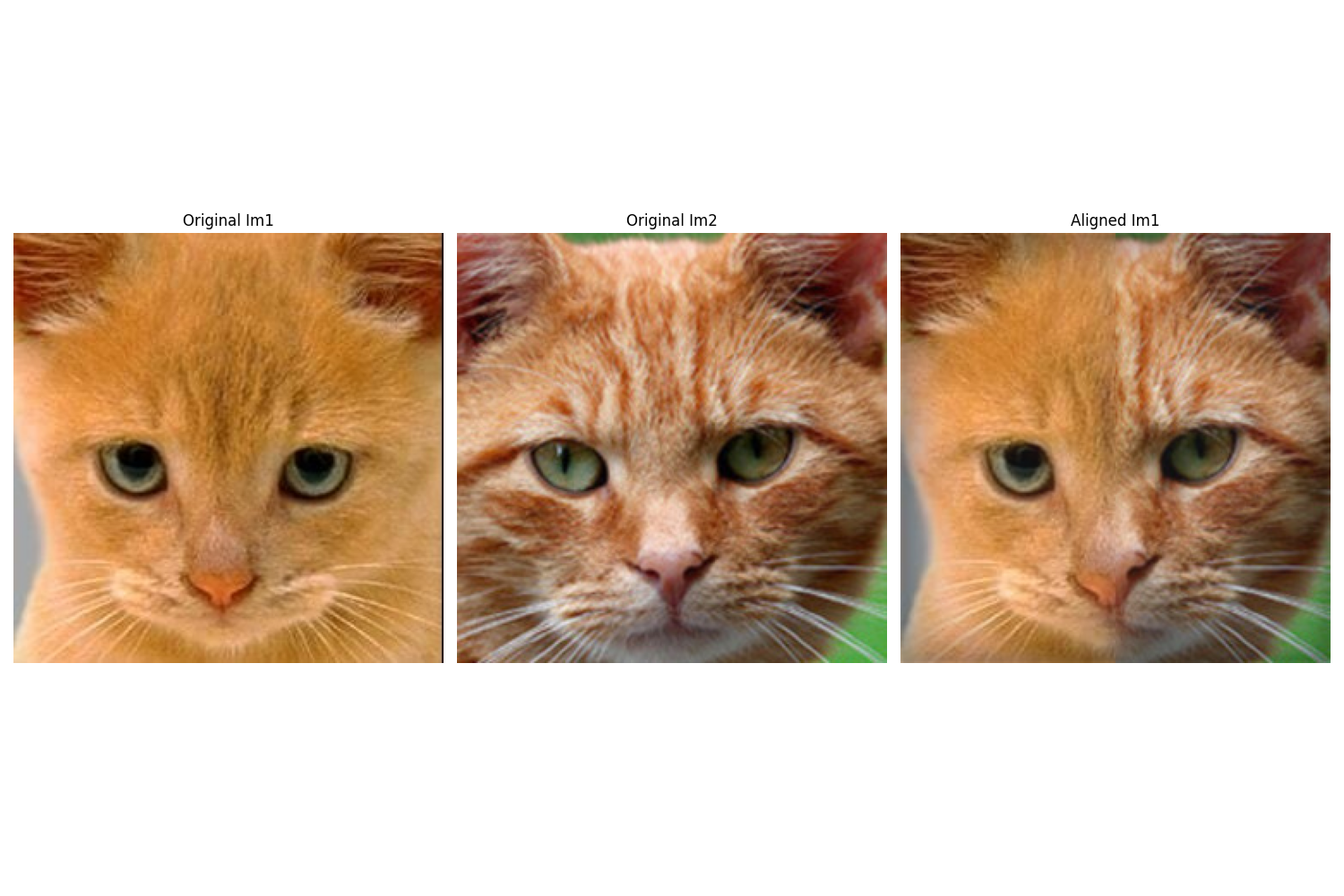

Two Orange Cats Blended

Can you tell this is blended? I'm apparently quite muscular! 💪
